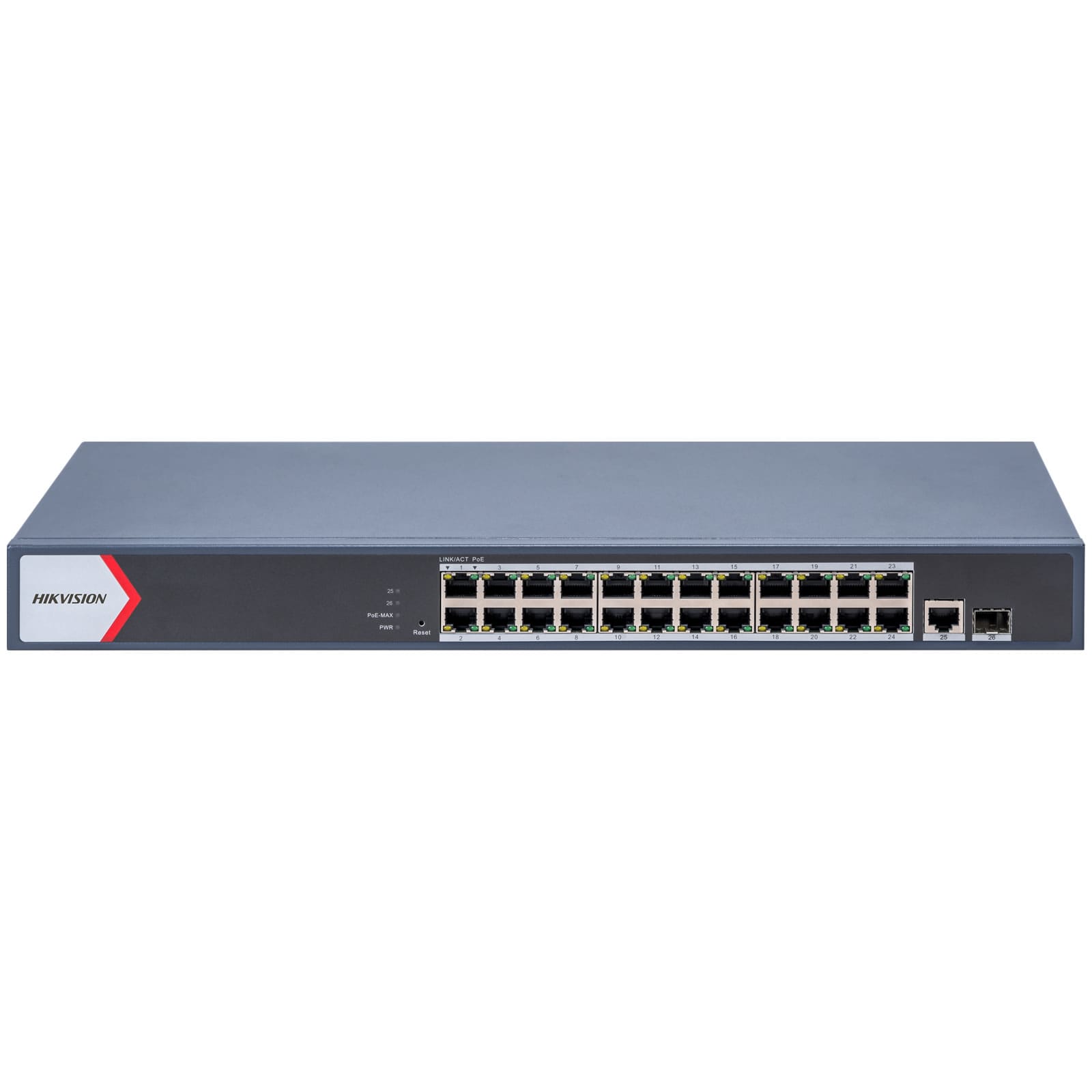

Switch Hikvision DS-3E1526P-EI/M – 24 puertos – Gigabit Smart POE
$ 268.619
Disponible para envío/retiro en 24/48 hs
SKU: DS-3E1526P-EI/M
EAN: 6942160430904
Descripción
Especificaciones de Switch Hikvision DS-3E1526P-EI/M – 24 puertos – Gigabit Smart POE
- General
Carcasa: metal
Peso neto: 2,96 kg
Peso bruto: 3,2 kg
Dimensiones (an. x al. x prof.): 440 × 220,8 44 mm
Temperatura de funcionamiento: 0°C a 45°C
Temperatura de almacenamiento: -40°C a 85°C
Condiciones de humedad: 5% a 95%
Humedad relativa: 5% a 95%
Fuente de alimentación: 100~240 VAC, 50/60 Hz, Max. 4 A
Modo de instalación: rack (equipado con orejas de montaje)
Consumo de energía máx: 250 W
Consumo de energía en inactivo: 30 W
Surge Protection: 6 KV - Parámetros de red
Puertos:
– 24 × Gigabit PoE port
– 1 × Gigabit RJ45 port
– 1 × Gigabit fiber optical port
Tabla de direcciones MAC: 8 K
Capacidad de conmutación: 56 Gbps
Tasa de reenvío de paquetes: 41.66 Mpps
Caché interna: 4.1 Mbits - Fuente de alimentación PoE
PoE Standard: IEEE 802.3af,IEEE 802.3at
Pin de alimentación PoE: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Puerto PoE: PoE: Ports 1 a 24
Puerto de alimentación máx.: 30 W
PoE Power Budget: 230 W - Función de software
Largo alcance: Ports 1 to 24: hasta 300 m.
Port Isolation:
– Ports 1 to 26: port isolation mode to improve network security
– Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog: Ports 1 to 24: auto detect and restart the cameras that do not respond.
Link Aggregation:
– Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
– Support static link aggregation.
– Support 8 aggregation groups.
QoS:
– QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.
– Support port-based priority configuration.
– Support SP and WRR priority scheduling modes.
Loop Prevention:
– Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
– Support 802.1D STP.
– Suppport 802.1w RSTP.
VLAN:
– VLAN is used for network scale planning and network health improvement.
– Support 802.1Q.
– Configurable VLAN ID from 1-4094.
– Support Trunk, Access port mode.
– Support Max. 32 VLAN.
HPP:
– Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
System Maintenance:
– Support device management via web.
– Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
– Support Super IP, which is a configurable IP address (default: 10.180.190.200) for direct access.
– Support management via Hik-Central Pro.
– Support remote management via Hik-Partner Pro.
– Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
– Support 802.1ab LLDP for peer device discovery.
– Support port mirroring for fault locating.
DHCP Snooping: DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted portsto pass through. Disabled by default. - Certificaciones
EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Seguridad: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Química:
– CE-RoHS (201165EU);
– WEEE (201219EU);
– Reach (Regulation (EC) No.19072006) - Garantía
2 años - Link del fabricante
